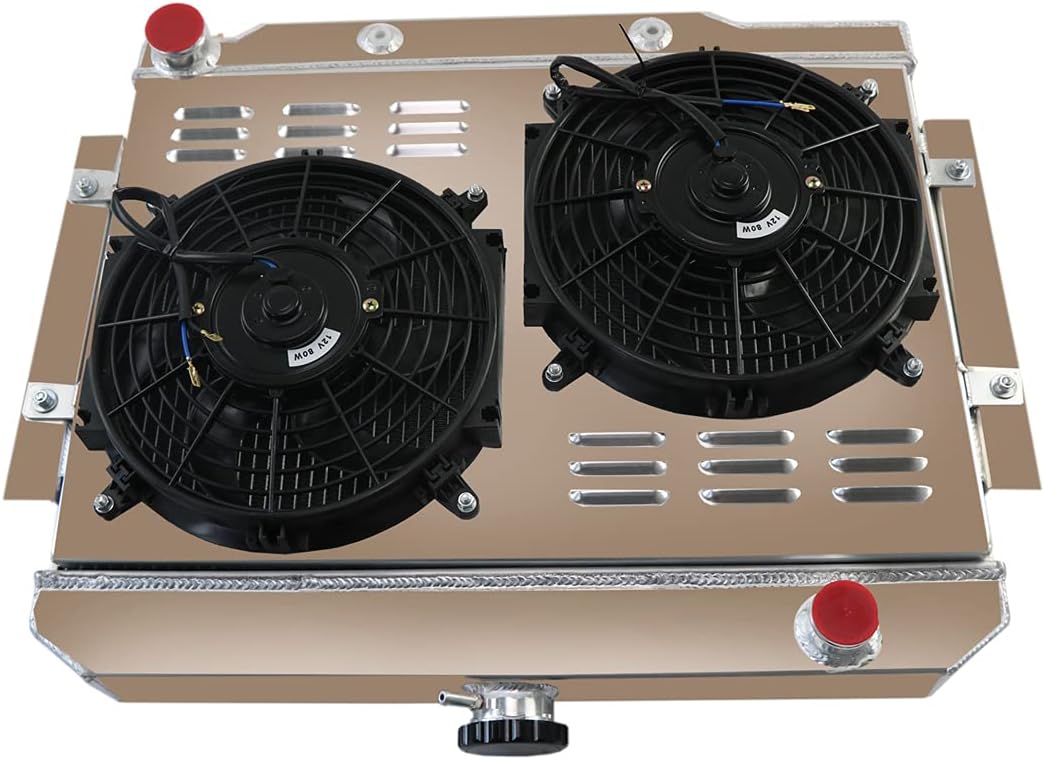

4 Row Full Aluminum Radiator & Fan Shroud & Thermostat Relay Kit Compatible for 72-86 Jeep CJ5 CJ6 CJ7 w/CHEV V8 Swap AT MT

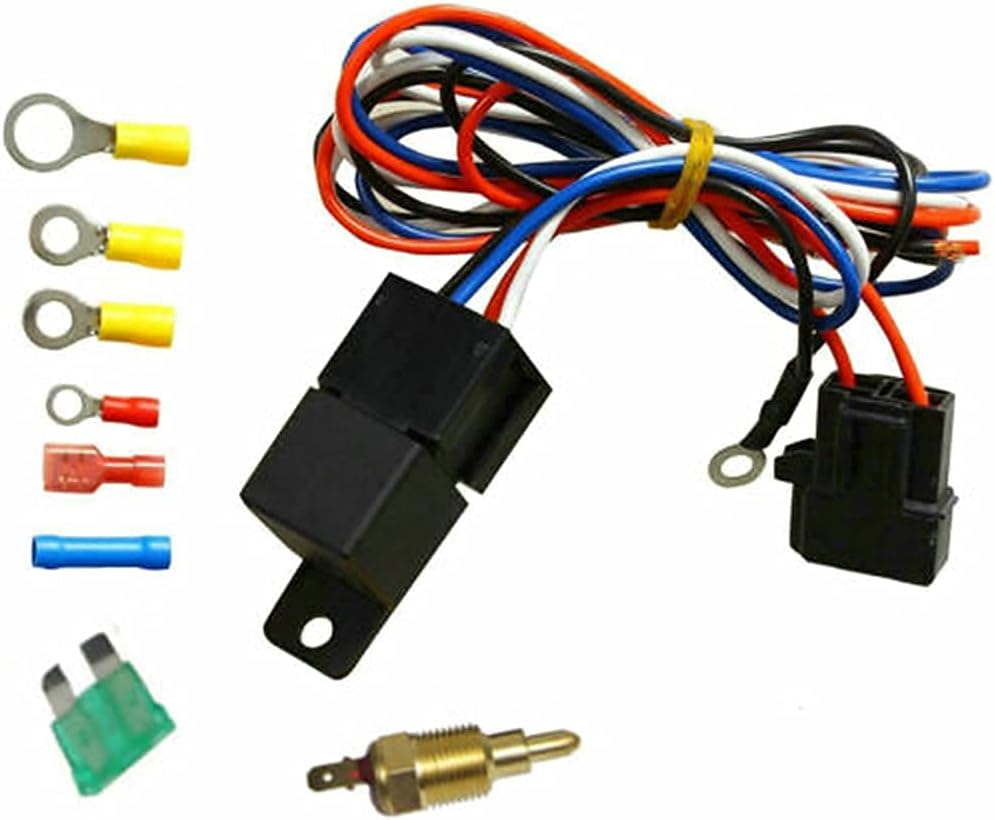

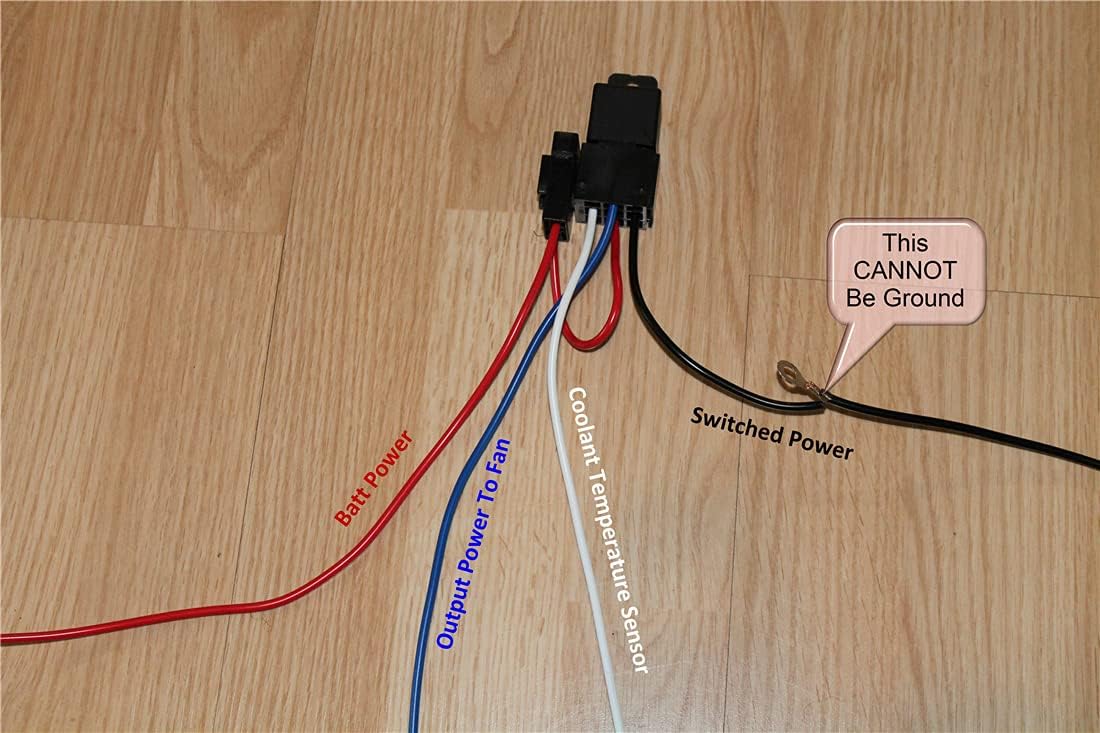

Radiator Specifics: Condition: 100% Brand New Material: Aircraft AA5052 grade aluminum tank & core Row: 4 Row Core Size: 15.7'' H x 23.9'' W x 2.44'' Thickness Overall Size: 21.7''H x26.8''W x 6.7'' T Inlet Diameter: 1.5 inch Driver Side Outlet Diameter: 1.77 inch Passenger Side Transmission Cooler included Mounting Type: Bracket Mounted OEM Style Brass Petcoke Drain CNC machined filler neck and cap Fan Spec: Maximum Fan CFM: 2500±200 Fan Diameter (in): 10.050" Thickness (in): 2.500" Number of Blades: 6 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1972-1983 Jeep CJ5 (2.2L 2.5L l4)(3.8L 4.2L l6)(5.0 V8) 1972-1975 Jeep CJ6 (3.8L 4.2L l6)(5.0 V8) 1976-1986 Jeep CJ7 (2.5L l4)(3.8L 4.2L l6)(5.0 V8) PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

• Core Size: 16 TALL X 24 WIDE; Overall Size: 22 TALL X 27 WIDE
• Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
• Light Weight Direct Bolt-On OEM Fitment or Replacement, Stronger & Higher Capacity for Coolant than Stock One
• Precision-engineered by in-house team of automotive experts, heavy-duty design withstands harsh conditions to deliver enduring quality
• Shroud fan provides protection and extra heat heat dissipation for the radiator
